Cowells Small Machine Tools - tools to model engineers, clockmakers and professional engineers

Accessories for the Cowells Wheel & Pinion Cutter
G19	Horological Collets 8mm	0.3mm and 0.4mm collets (priced individually)	£105.00

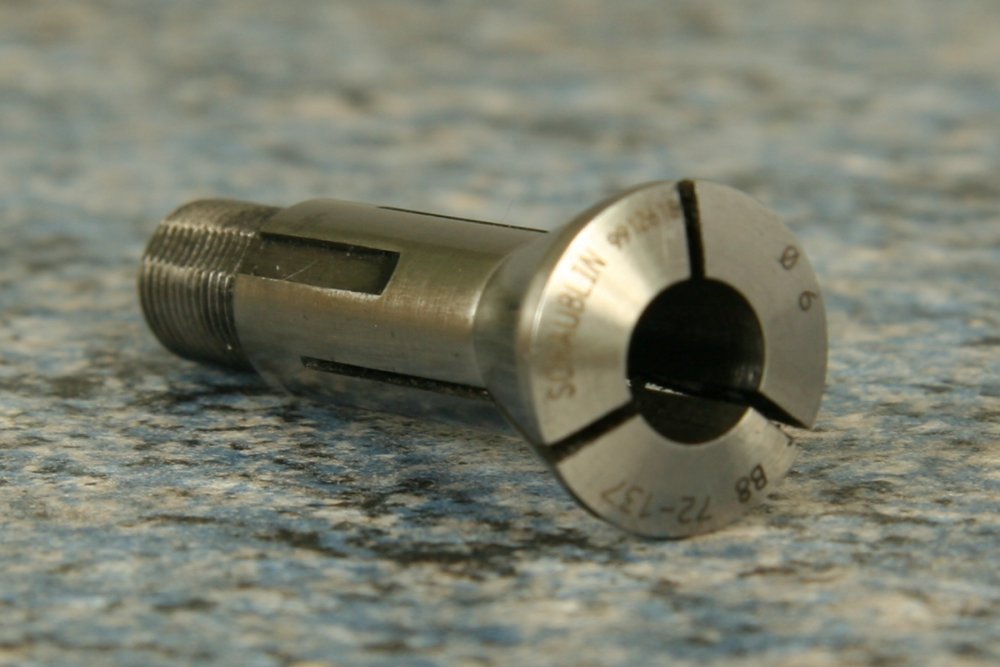

G20		0.5mm to 0.9mm collets in 0.1mm increments (priced individually)	£88.00
G21A		1.0mm to 1.4mm collets in 0.1mm increments (priced individually)	£65.00
G21B		1.5mm to 2.9mm collets in 0.1mm increments (priced individually)	£49.00
G22A		3.0mm to 8.0mm collets in 0.5mm increments (priced individually)	£39.85
G22IMP		1/16", 1/8", 3/16", 1/4" imperial collets (priced individually).	£39.85
G22SP		Special sizes in the range 3mm to 8mm are available upon request	£79.00
RG71-5	Cutter Arbors	8mm dia Shank, 7.5mm dia head, M4 locking thread	£31.00
RG71-6	Cutter Arbors	8mm dia Shank, 7.5mm dia head, M6 locking thread	£31.00

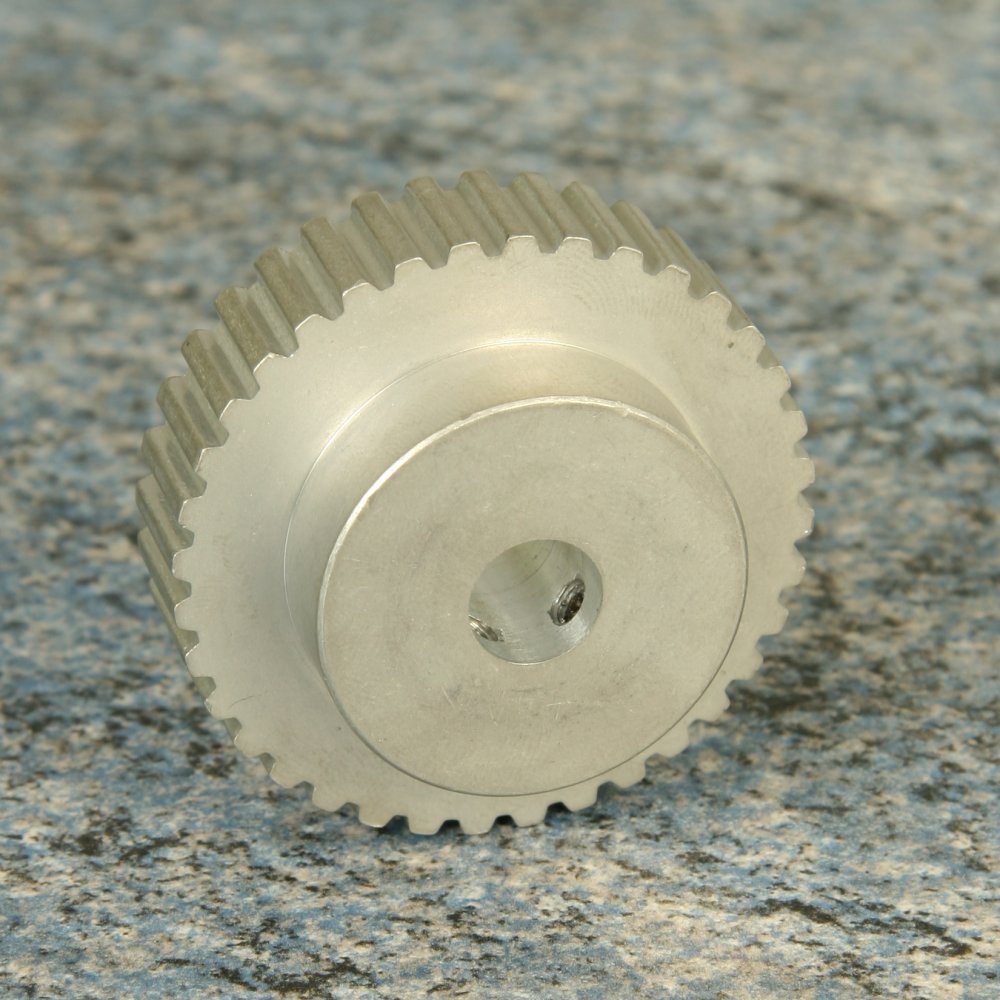

RG85SL	Reduction Pulley	Slow Speed 36 Tooth Reduction Pulley Speed range: 250-575-1250	£38.50

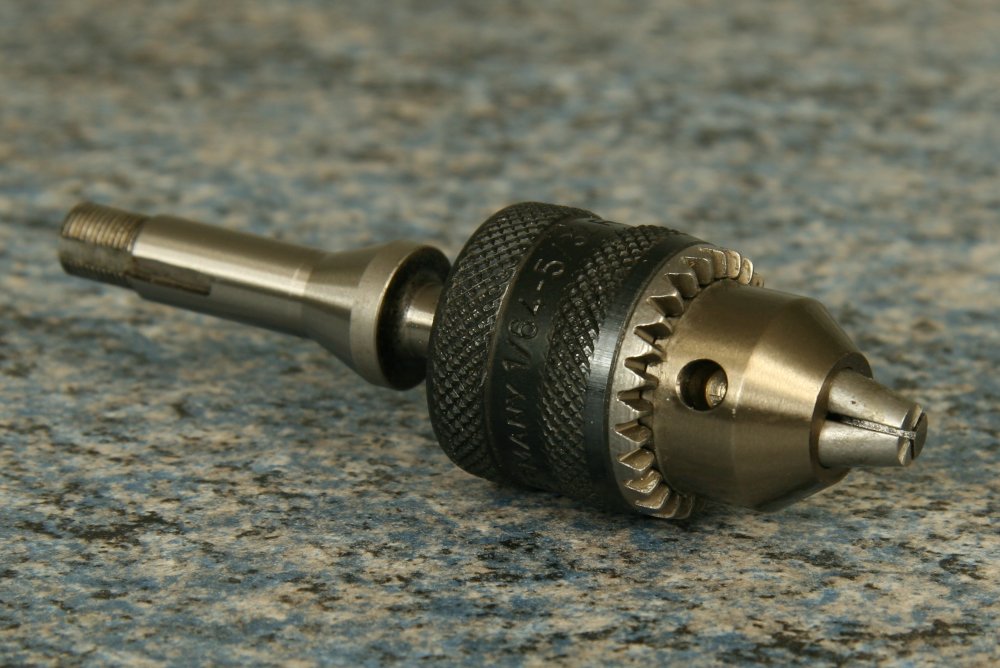

RGB14	Drill Chuck	A high precision 0 - 4mm (5/32") drill chuck supplied with mounting arbor.	£82.95

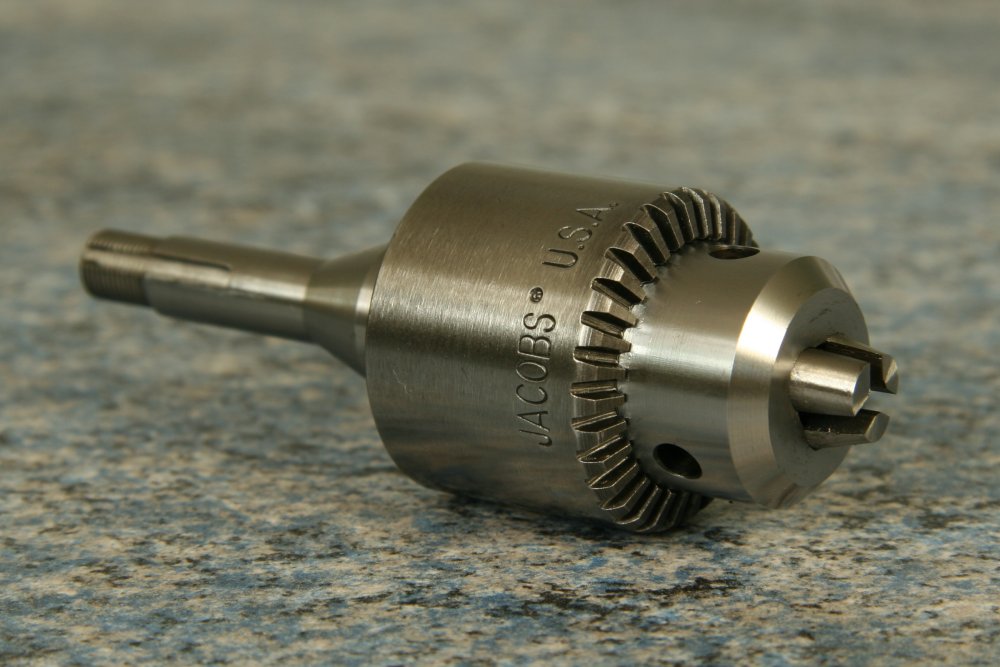

RGB15		A 0 - 6.3mm (1/4") drill chuck supplied with mounting arbor.	£41.50
RGB16		A 0 - 9.5mm (3/8") drill chuck supplied with mounting arbor.	£54.00
RGB70-1	Chuck & Drill Chuck Arbor	90CW 8mm shank to "OJ" (suits RGB14)	£35.00
RGB70-2		90CW 8mm shank to 3/8" x 24 tpi (suits RGB15)	£32.00
RGB70-3		90CW 8mm shank to M14 dia x 1mm pitch	£52.00
RGB72-3	Blank Arbor	90CW 8mm shank to 20mm dia x 30mm length	£21.50

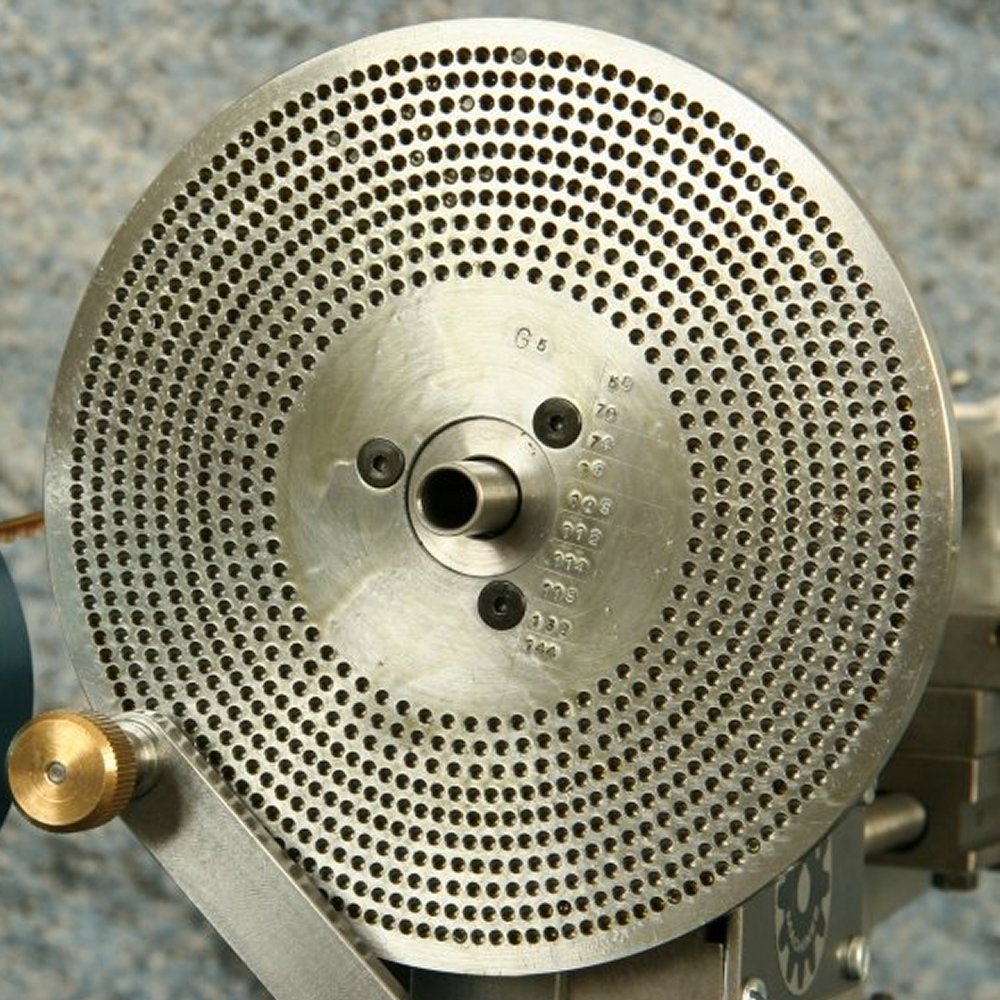

RG-G1	Division Plates for RG85 Wheel and Pinion Cutter	100 - 96 - 84 - 80 - 78 - 72 - 64 - 62 - 60 - 59	£96.00
RG-G2		120 - 100 - 96 - 90 - 84 - 80 - 78 - 72 - 64 - 62	£102.00
RG-G3		88 - 75 - 70 - 63 - 59 - 56 - 54 - 49 - 41 - 34	£96.00
RG-G4		144 - 120 - 114 - 112 - 100 - 96 - 84 - 70	£109.00
RG-G5		144 - 132 - 118 - 114 - 112 - 108 - 98 - 74 - 70 - 58	£112.00

All Cowells machines are guaranteed for 5 years.
